Vector Network Analyzer

SNA5000A Series

SNA5000A

Frequency Range

9 kHz-26.5 GHz

Ports

Frequency Resolution

1 Hz

SNA5000A

Product Introduction

As a high-performance vector network analyzer, SNA5000A series balances cost and performance. Support high-frequency measurement and one-click analysis of filter characteristics, and quickly obtain key indicators such as insertion loss and bandwidth. Its flexible port configuration and scanning mode meet different test requirements. Widely used in antenna design, RF cable testing and other scenarios, helping engineers to complete research and development tasks efficiently.

Key Features

Frequency range: 9 kHz ~ 8.5 GHz and 100 kHz – 26.5 GHz
Range of IFBW：1 Hz~10 MHz
Setting Range of Output Level：-55 dBm ~ +10 dBm
Optional spectrum analyzer and TDR functions
Support scattering-parameter correction of SOLT, SOLR, TRL, Response, and Enhanced Response
Support one-key measurement of Q-factor, bandwidth and insertion loss of a filter

Product advantage

Low noise floor and a wide dynamic range for accurate measurements

System Dynamic range, the difference between the measurement power available at the test port and the noise floor of the receiver is critical parameter of a VNA. The SIGLENT SNA5000A dynamic range is up to 125 dB@10 Hz IFBW, noise floor is down to -125 dBm/Hz, satisfies specific RF test requirements like test passband and out-of-band rejection of filters simultaneously.

Abundant measurements and display formats

SNA5000A supports scattering-parameter measurement, differential-parameter measurement, receiver measurement, time-domain parameter analysis, limit test, ripple test, enchanced time-domain parameter analysis (TDR).
There are shortcuts to add traces and windows to perform full 4 port S parameters measurements. Various kinds of display formats incluing Log Mag, Lin Mag, Phase, Delay, Smith, SWR, Polar provide convenience to analyze DUT transmission and reflection coefficients, SWR, impedance match, phase, delay. In antenna and filter manufacturing, reference trace and limit test is an efficiency booster for production.

Enhanced Time-Domain Analysis (TDR)

The SNA5000A TDR option contains two parts: TDR/TDT(Time Domain Reflection/Transmission) and Eye/Mask.
TDR intuitively display impedance discontinuous position and characteristics. It can indicate the impedance of every point along the transmission line, helps to locate fault points. With time domain gating, easily eliminate influences of some kinds of mismatch. It helps to analyze the influences of malfunctions to DUT characteristics.

Future-Proof Your Material Test

SIGLENT deliver a comprehensive material measurement solution ideal for lab, manufacture and university environments, including SNA series precision instruments, MT materials measurement software, KWR42A waveguide calibration kit. The measurement wizard guides the user through the measurement process and the results can be plotted in a variety of formats.

Gain Compression Measurement

The function can complete the measurement of compression parameters and linear parameters within the operating frequency through one connection and one calibration. It supports three data acquisition mode and provides linear gain compression, max gain compression, back-off compression, X/Y compression, saturation compression methods to flexibly responding to complex test requirements and ensure comprehensive and accurate characterization of the nonlinear behavior of the device.

Scalar/Vector Mixer Measurement

The function supports various sweep modes such as linear frequency sweep, power sweep and segment sweep, and allows flexible setting of parameters such as source port power, LO port power, and attenuation. The four-port model has built-in dual signal sources, and the second source can be used as the LO or provide the LO signal by controlling an external signal generator. The calibration wizard guides the user through calibration process to provide comprehensive and accurate mixer/converter characteristic measurements.

Extend the Power to Multiport Devices

SSM single unit can expand the output ports to 24 and can be easily integrated, greatly adapt to the automatic test system and production line scenarios. The multi-port measurement capability of VNA can improve test throughput and thereby significantly reduce device test costs. Typical applications include design, verification and production of antenna, data converter interfaces, automatic test of RF components and other devices, etc.

Product parameter

View All Parameters

Configure your instrument

Options

Accessories

Models

Add to Compare	Models	Frequency Range	Ports	Frequency resolution	Level resolution	Range of IFBW	Setting range of output level	Dynamic range	Price

Resources

Document Download

Firmware & Software

Application Notes

Document Download

Firmware & Software

Application Notes

Universal accessories

Product

Description

USB Cable

USB-A to USB-B. Used to connect instrument to PC for communication.

Power cord

The instrument comes standard with a power cord that conforms to the national standard of the user. Additional power cords in different regions can be purchased separately.

SNA5000A calibration certificate

Calibration certificate

wireless mouse

A wireless mouse comes standard to help you improve your operating experience.

Calibration kit

Product

Description

F604TS

Mechanical Calibration Kit: Open, Short, Match, Through, DC-9 GHz, 50Ω, 3.5 mm, Male and Female

Click to view the calibration parts manual

F604MS

Mechanical Calibration Kit: Open(M), Short(M), Match(M,50), Through(M-M), DC-9 GHz, 3.5mm SMA-type

Click to view the calibration parts manual

F604FS

Mechanical Calibration Kit: Open(F), Short(F), Match(F,50), Through(F-F), DC-9 GHz, 3.5mm SMA-type

Click to view the calibration parts manual

F603ME

Mechanical Calibration Kit: Open(M), Short(M), Match(M,50), Through(M-M), DC-4.5 GHz, SMA-type

Click to view the calibration parts manual

F603FE

Mechanical Calibration Kit: Open(F), Short(F), Match(F,50), Through(F-F), 4.5 GHz, 3.5mm SMA-type

Click to view the calibration parts manual

F504TS

Mechanical Calibration Kit: Open, Short, Match, Through, DC-9 GHz, 50Ω, N-type, Male and Female

Click to view the calibration parts manual

F504MS

Mechanical Calibration Kit: Open(M), Short(M), Match(M,50), Through(M-M), DC-9 GHz, N-type

Click to view the calibration parts manual

F504FS

Mechanical Calibration Kit: Open(F), Short(F), Match(F,50), Through(F-F), DC-9 GHz, N-type

Click to view the calibration parts manual

F503ME

Mechanical Calibration Kit: Open(M), Short(M), Match(M,50), Through(M-M), DC-4.5 GHz, N-type

Click to view the calibration parts manual

F503FE

Mechanical calibration piece, Open (F), Short (F), Match (F), Through (F-F), 50 Ω， 4.5 GHz

Click to view the Calibrator Manual.

F606TS

3.5mm，Male and Female，50ΩCalibrator，0-26.5GHz

Click to view the Calibrator Manual.

Y504MS

Mechanical Calibration Kit for Vector Network Analyzers:
Open (M), short (M), Match/Load(M, 50 Ohms), Through (M-M ) DC – 9 GHz

Click to view the calibration parts manual

Y504FS

Mechanical Calibration Kit for Vector Network Analyzers:
Open (F), short (F), Match/Load(F, 50 Ohms), Through (F-F ) DC – 9 GHz

Click to view the calibration parts manual

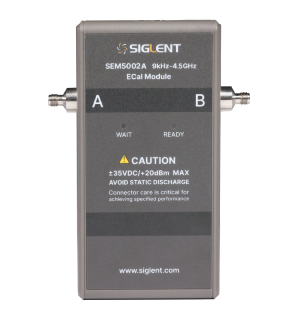

SEM5000A系列电子校准件

Electronic Calibration Kit: frequency range up to 4.5/9/13.5/26.5GHz, the RF connectors come in three forms: SMA female, 3.5mm female, and Type-N female.

Click to view the calibration parts manual

F505FS

Mechanical Calibration Kit, Open(F), Short(F), Match(F), Through(F-F), 50 Ω, 0-18 GHz

点击查看校准件手册

F505MS

Mechanical Calibration Kit, Open (M), Short (M), Match (M), Through (M-M), 50 Ω, 0-18 GHz

点击查看校准件手册

F505TS

Mechanical calibration piece, N Type, Open (M,F), Short (M,F), Match/Load (M,F 50 Ohms), Through (M-M, M-F, F-F), DC – 18 GHz

Click to view the Calibrator Manual.

KWR42A

50Ω Waveguide Calibration kit, 18-26.5GHz

Click to view the calibration parts manual

Other

Product

Description

SNA5000-HPR

High performance reference source

USB-GPIB Adapter

Expand the instrument’s USB interface into a GPIB interface. Using GPIB commands allows for easier execution of various operational tasks. The USB interface adheres to the USB 2.0 specification, while the GPIB interface complies with the IEEE 488.2 standard.
